17 March 2021

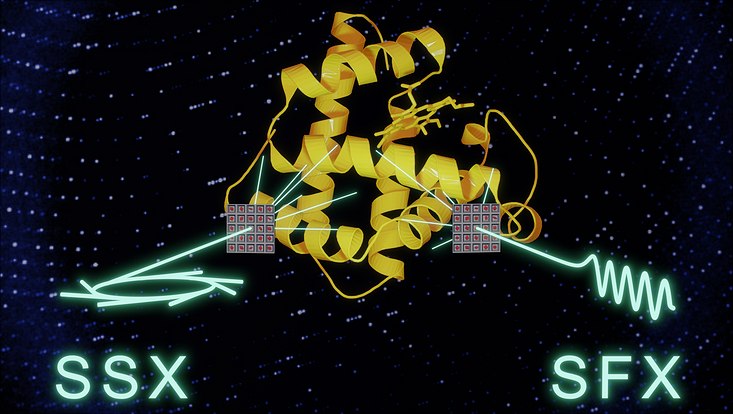

Photo: Jörg Harms, MPSD
A systematic comparison shows that serial synchrotron crystallography (SSX) and serial femtosecond crystallography (SFX) can yield data of equivalent quality. This opens new collaborative opportunities exploiting the advantages of both light sources to study biomolecular dynamics.
An international team of researchers among others from the Max Planck institute for the Structure and Dynamics of Matter in Hamburg, the University of Toronto (Canada), the Diamond Light Source in Oxford (UK), the European Molecular Biology Laboratory Hamburg, Universität Hamburg and DESY has found that two of the worlds brightest light sources offer more common research possibilities than originally anticipated. Although they operate on very different timescales, synchrotrons and XFELs can produce data of equivalent quality as long as serial data collection is used in the imaging process. These findings open up a new avenue for collaborative applications. The team’s work has been published in Science Advances.
All life is dynamic and so are its molecular building blocks. The motions and structural changes of biomolecules are fundamental to their function. However, understanding these dynamic motions at a molecular level is a formidable challenge. For decades, researchers have relied on X-rays provided by more than fifty synchrotron light sources around the world and made use of protein crystals to understand the molecular architecture of the building blocks of life.
In recent years, researchers designed a new generation of X-ray light sources to comprehend even the fastest motions in proteins: X-ray free electron lasers (XFEL). Uniquely, these ultrabright light sources can capture snapshots of protein dynamics within fractions of a trillionth of a second. However, their light pulses destroy the protein crystals and therefore several thousand have to be examined to obtain a complete structure – in contrast to canonical structure determination at synchrotrons using only a single crystal. Hence at XFELs each crystal is exposed only once to the X-ray beam and rapidly replaced by a new one. This process is called serial data collection.
Insights into the fastest processes of life
To understand how a structure changes as the protein carries out its work, a reaction is initiated in the crystals which are subsequently exposed to the extremely bright XFEL pulses at defined delay times. These snapshots can then be assembled into a series of pictures which provide insights into the dynamics underlying even the fastest processes of life, from the fixation of carbon-dioxide to the water-splitting reaction during photosynthesis or the processes involved in human vision. Unfortunately, there are currently only seven XFELs operational around the world, which limits general access and restricts their use to specialized groups.
However, the majority of protein reactions is completed in about a tenth of a second, just the blink of an eye - but a snail’s pace compared to the ultrafast examples given above and well within the reach of widely accessible synchrotrons, which can routinely provide insights into processes that are up to a thousand times faster than that.
But if the timescales are so different are the results really comparable? The work of the team, which includes scientists from the Cluster of Excellence "CUI: Advanced Imaging of Matter", shows that they are – as long as serial data collection and crystals of similar size are used in the imaging process at both types of light sources. At XFELs, the technique is crucial because the samples are destroyed by their exposure to the X-rays. But as this study shows, the use of serial data collection also minimizes radiation damage at synchrotrons and produces results of an equivalent quality.
Combining the key strengths of both light sources
This is an important result, as it allows scientists to address comprehensive questions by combining the key strengths of both light sources. In other words: the fastest dynamics can be addressed at highly specialized XFELs while slower dynamics can be tackled at more broadly available synchrotrons.
The combination of both light sources should therefore broaden the scope of biomolecular dynamics. This would also facilitate further detailed research into the workings of health-related proteins, including those playing key roles in infectious diseases like SARS-CoV2 or pathogenic bacteria resistant to antibiotic therapy. Ultimately, these fundamental new insights will enable scientists to develop better future treatments for a wide range of conditions.Text: MPSD, ed.
P. Mehrabi, R. Bücker, G. Bourenkov, H.M. Ginn, D. von Stetten, H.M. Müller-Werkmeister, A. Kuo, T. Morizumi, B.T. Eger, W.-L. Ou, S. Oghbaey, A. Sarracini, J.E. Besaw, O. Pare´-Labrosse, S. Meier, H. Schikora, F. Tellkamp, A. Marx, D.A. Sherrell, D. Axford, R.L. Owen, O.P. Ernst, E.F. Pai, E.C. Schulz and R.J.D. Miller
"Serial femtosecond and serial synchrotron crystallography can yield data of equivalent quality: a systematic comparison"
Sci. Adv.7, eabf1380 (2021)
